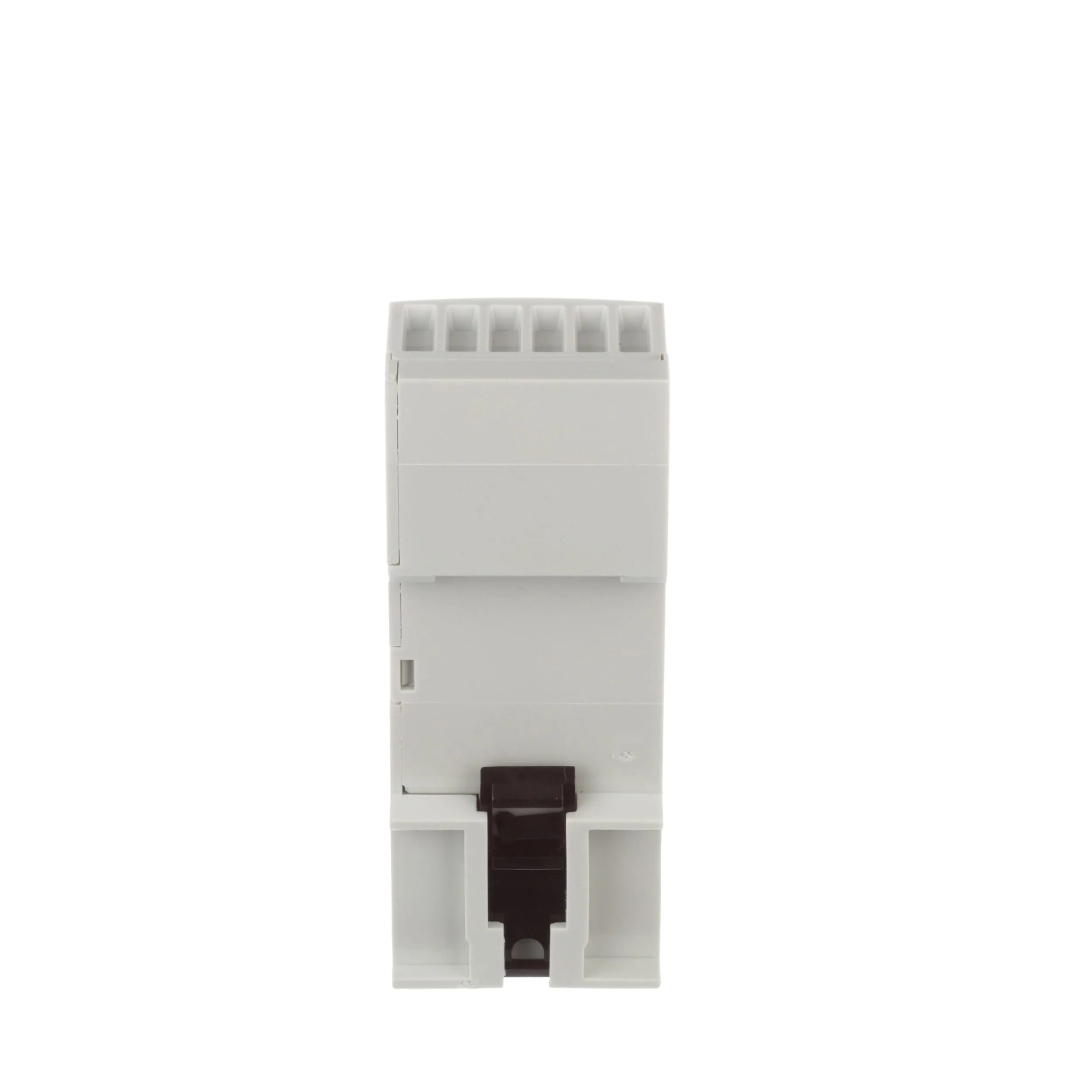

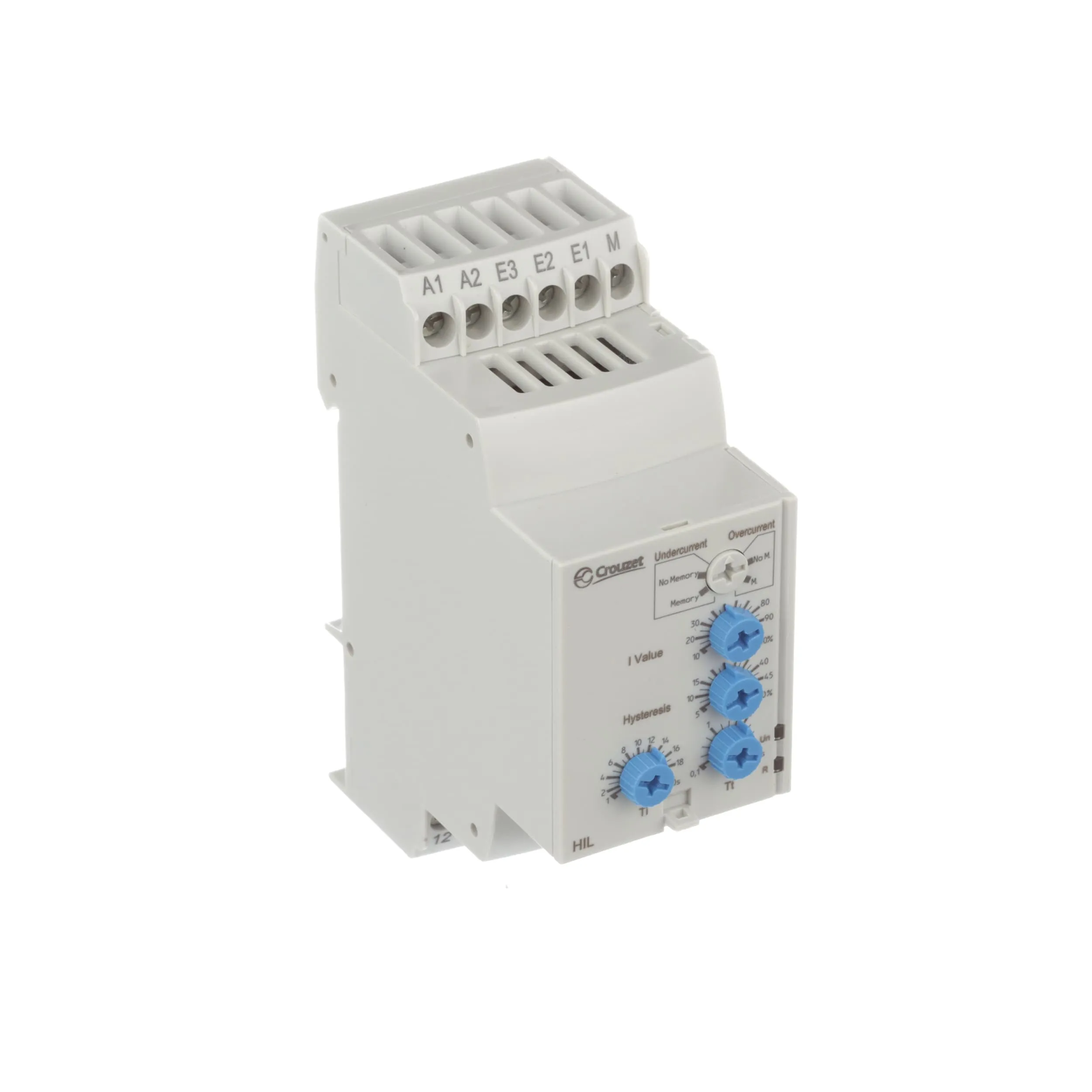

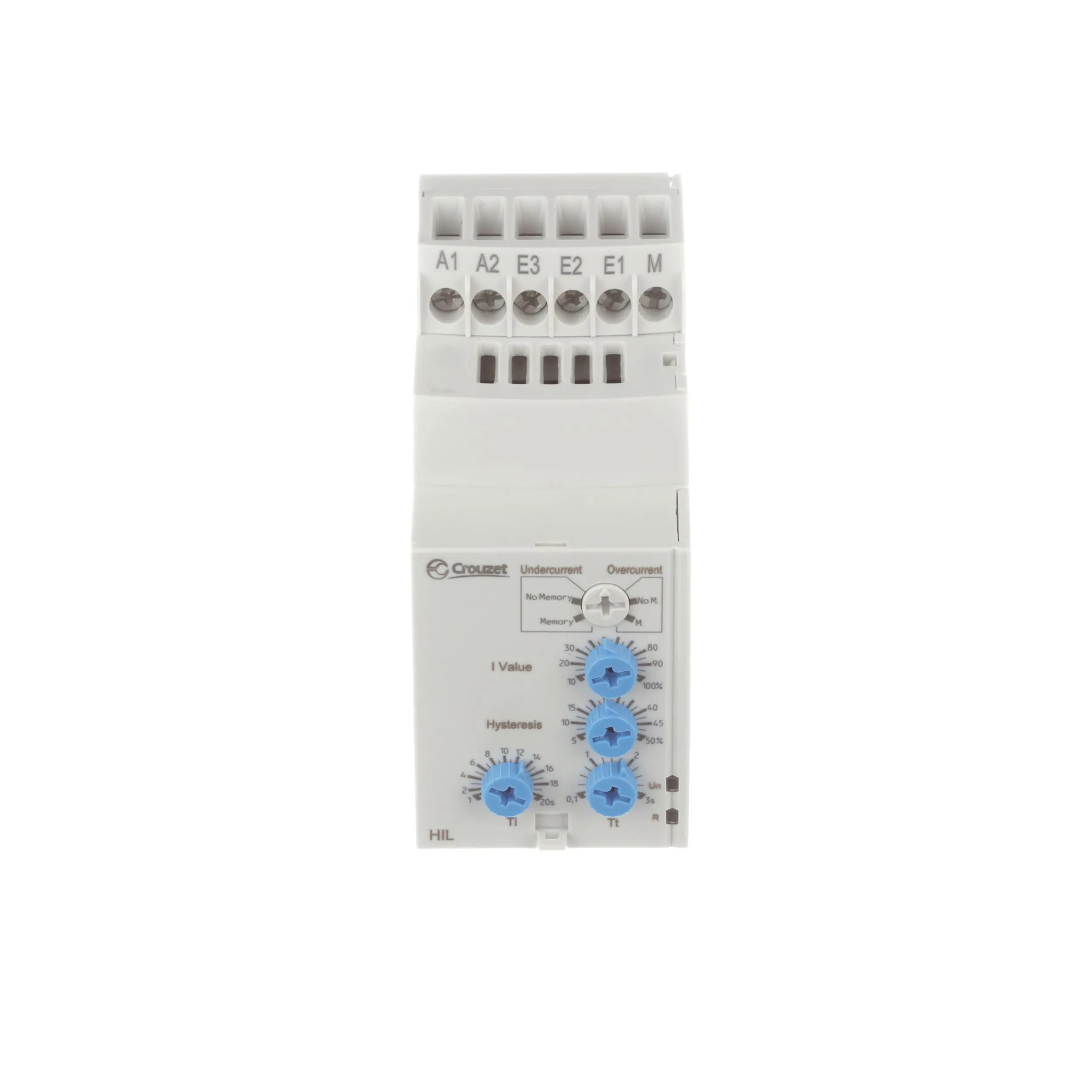

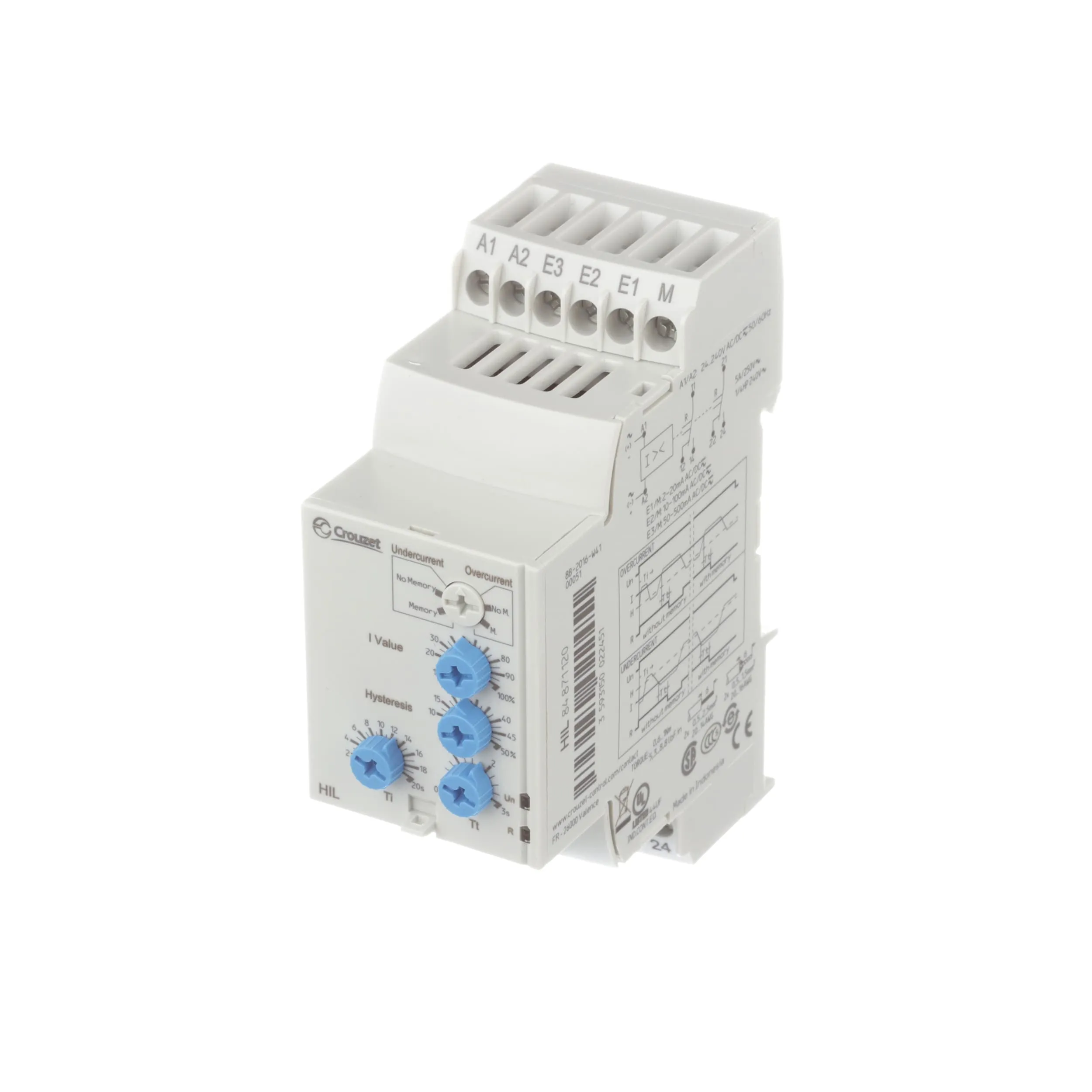

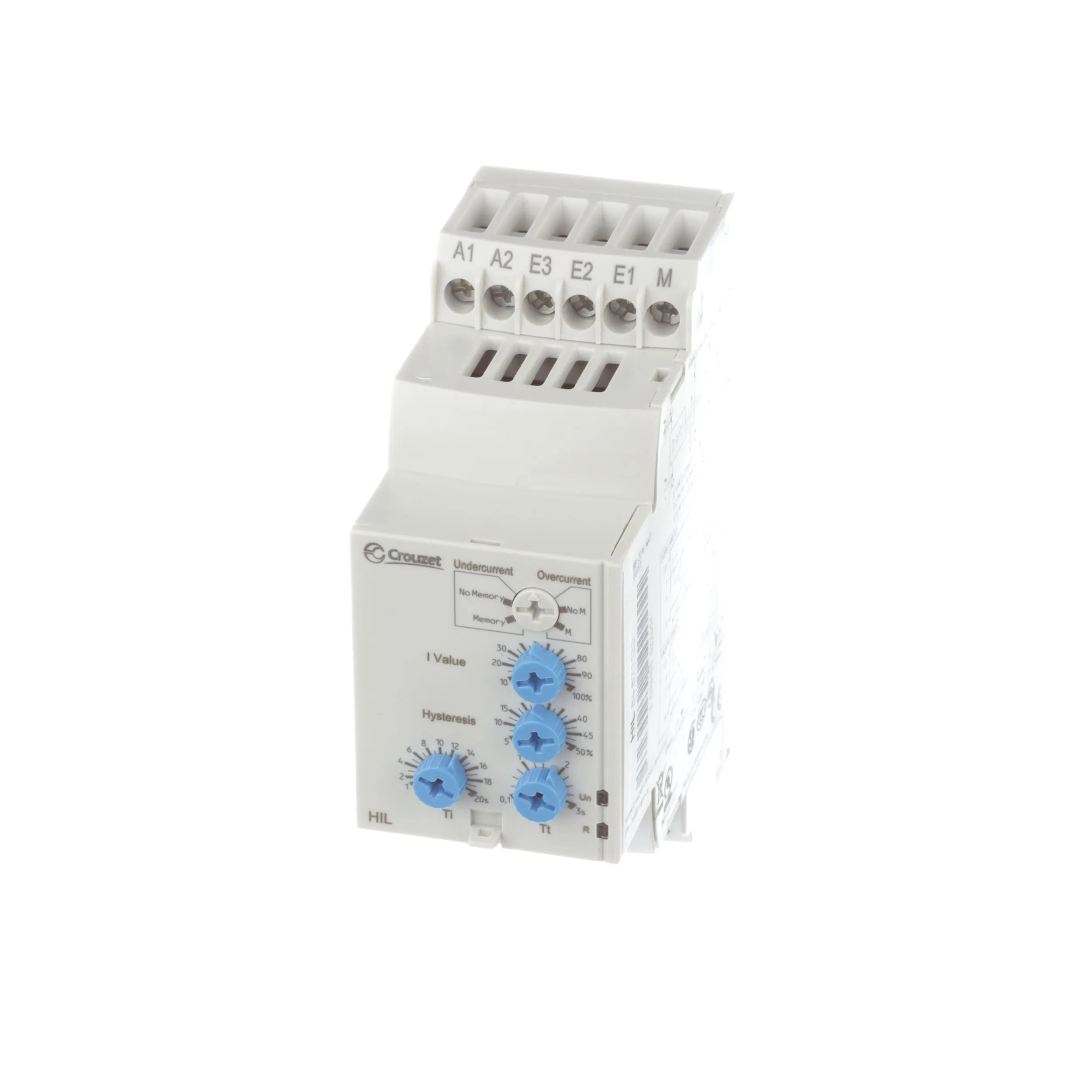

Name: Crouzet 84871120
SKU: 7277

Product Attribute	Attribute Value
Depth, Overall	69 mm
Dimensions, Overall	35 x 90 x 69
Enclosure Rating	IP20 (Terminal), IP30 (Casing)
Function	Control
Input Type	Voltage
Length, Overall	35 mm
Maximum Operating Temperature	50 °C
Minimum Operating Temperature	-20 °C
Mounting Style	DIN Rail Mount
Number of Inputs	1
Number of Outputs	1
Output Type	Relay
Product Header	DIN Rail Mounted Current Control Relay
Relay Type	Electro Mechanical
Series
Standards	CE, CSA, GL, UL
Supply Voltage	24 to 240 VAC/VDC
Temperature Operating Range	-20 to 50 °C
Type	Liquid Level Controller
Voltage Rating	250 VAC/VDC
Voltage, Control	240 VAC⁄VDC
Width, Overall	90 mm

Overview

Controls AC and DC currents with and without memory. When the current reaches the threshold set point, the output changes state at the end of the selected time delay. Once the current drops below the hysteresis (% of the threshold), the output changes state instantly. In memory mode, the relay remains in the faulted condition until the unit is reset manually. HI, EI Series are over- or under-current selectable. Ideal for where maintaining current levels is crucial for equipment protection. Outputs rated for 8 A resistive loads. Approvals: UL and cUL listed and CSA Certified. IRT models UL Recognized only.

Features:

Monitor AC or DC Current

HI Series Monitor 5 mA to 10 A

MIC Series Monitor 2 A to 20 A

MIC Series Has Built-In Current Transformer

Selectable Memory Function

Monitor Over and Under Current
